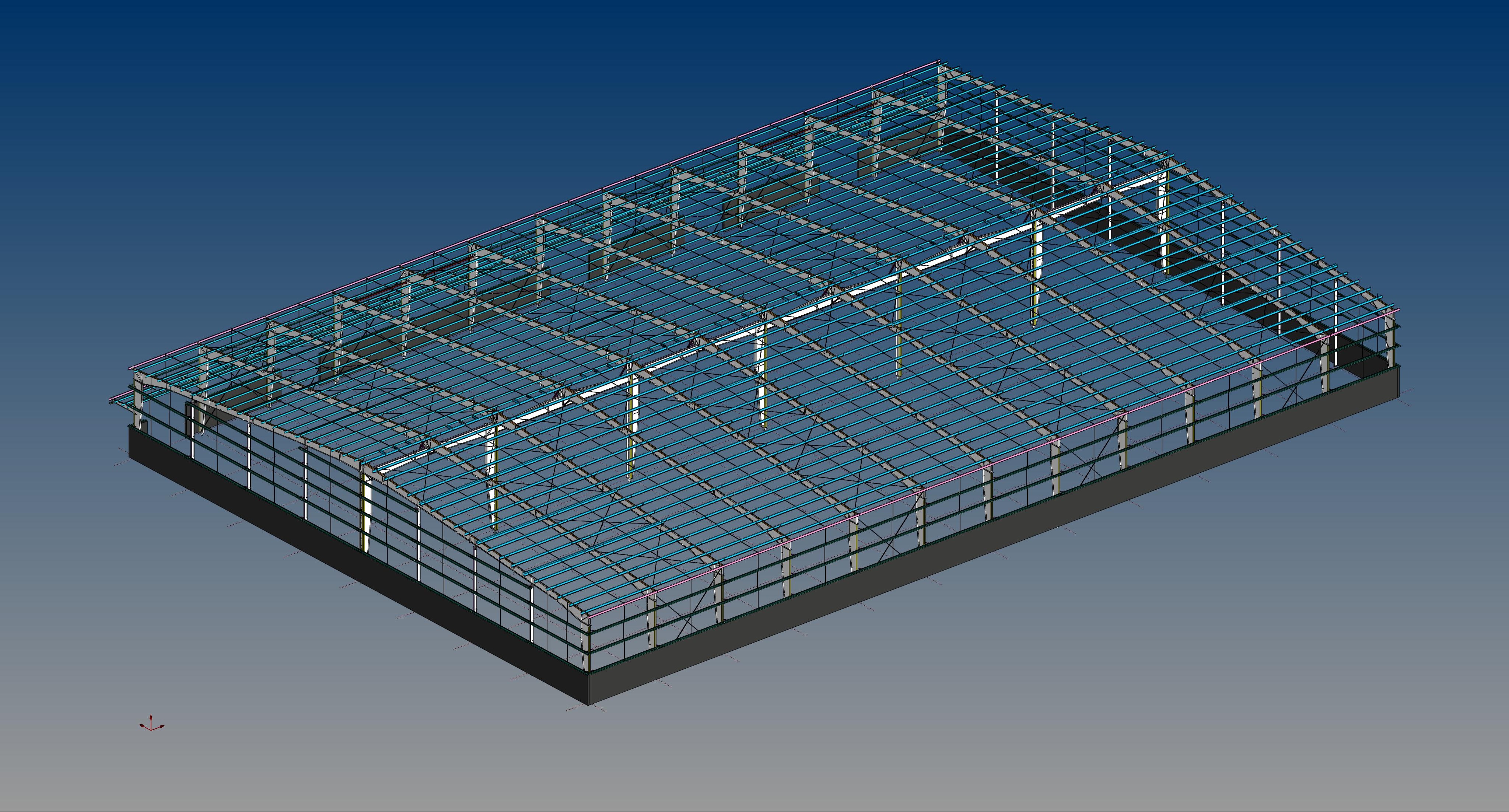

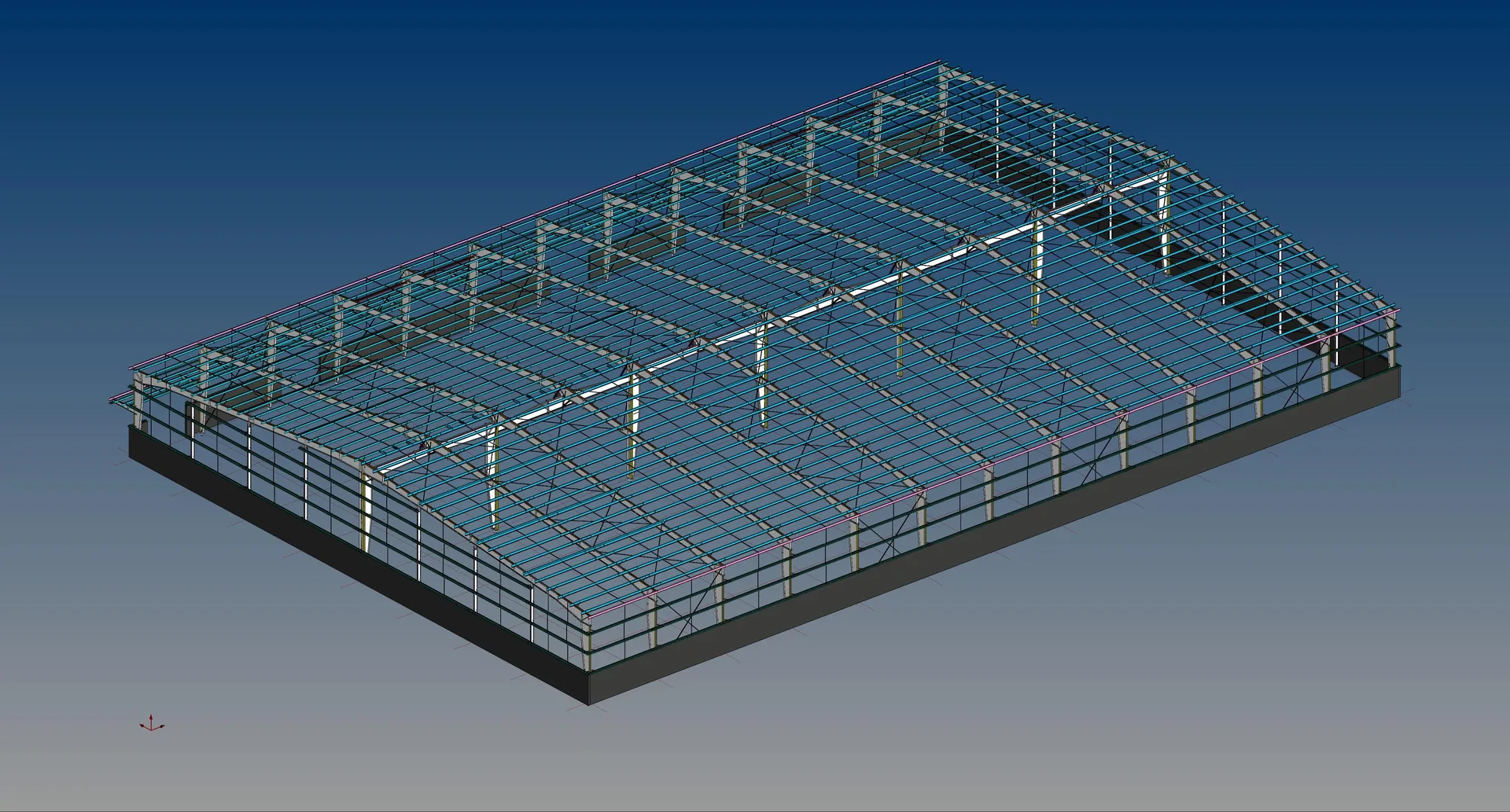

3D Constructible BIM Models: Clash-free Tekla models detailing primary frames, secondary framing, mezzanine decks, and crane girders.
Anchor Bolt & Foundation Plans: Exact grid coordinates, embedment details, and reaction loads for precise site foundation prep.
Primary Frame Shop Drawings: Fully detailed tapered columns, rafters, moment connections, and splice plates.
Secondary Cold-Formed Framing: Automated layouts for C & Z purlins, wall girts, eave struts, and sag rods with exact bolt-hole punching.
Sheeting, Cladding & Accessories: Roof/wall panel layout plans, flashing details, gutter profiles, and skylight framing.
CNC Production Data: Direct export of DSTV (.NC1), DXF, and MIS reports for automated shop machinery (Ficep, Peddinghaus, Kaltenbach).
Tekla Structures automatically generates DSTV NC files, DXF profiles, and XML data directly from the 3D model. This allows PEB fabricators to feed automated CNC drilling, cutting, and punching machines with 100% data accuracy.
